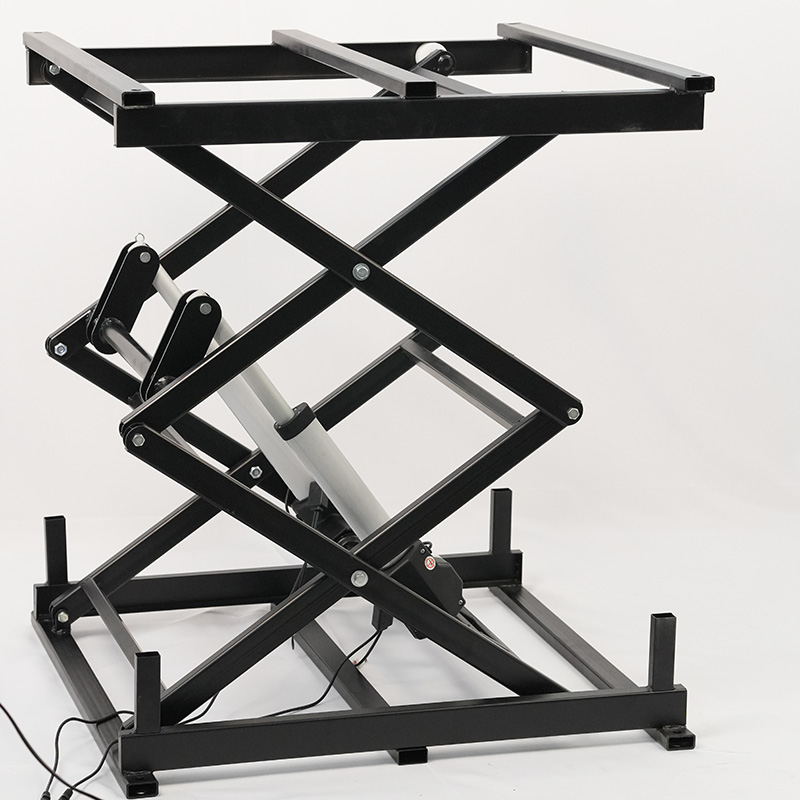

800×600 Double-Layer Dual-Motor 8000N Lifting Frame

800×600 Double-Layer Dual-Motor 8000N Lifting Frame

The 800×600 Double-Layer Dual-Motor 8000N Lifting Frame is a high-performance electric lifting system designed for height-adjustable furniture, manicure tables, beauty equipment, workstations, medical furniture, and other applications requiring strong and stable vertical movement. Featuring a double-layer telescopic structure, dual electric motors, and an 8000N lifting system, this model provides excellent load-bearing capability and reliable height adjustment for demanding applications.

Strong Dual-Motor Lifting System

Equipped with two electric motors, the lifting frame provides balanced driving force on both sides of the structure. The dual-motor configuration helps improve lifting stability and provides strong power for applications involving relatively heavy equipment or work surfaces.

With a dynamic load capacity of approximately 240 kg, the frame is suitable for supporting substantial loads when properly installed. The lifting system is designed to provide controlled and stable movement during daily operation.

Wide Height Adjustment Range

The frame measures approximately 800×600 mm and has a compact closed height of approximately 210 mm. When fully extended, it can reach a maximum height of approximately 1,100 mm, providing a wide vertical adjustment range for different working requirements.

The double-layer telescopic structure allows the frame to maintain a practical closed dimension while providing substantial lifting height. This makes it suitable for furniture and equipment requiring flexible height adjustment without excessive installation space.

Smooth and Reliable Operation

The complete lifting process takes approximately 42 seconds, providing convenient electric height adjustment. The synchronized dual-motor design helps maintain balanced movement during lifting and lowering, reducing uneven loading and improving overall operational stability.

The frame can be manufactured with high-strength metal components and a durable surface finish, providing good structural rigidity, wear resistance, and long-term service performance.

Wide Range of Applications

The 800×600 lifting frame is ideal for electric manicure tables, adjustable beauty workstations, salon furniture, office furniture, medical equipment, rehabilitation equipment, laboratory workstations, and customized lifting platforms. Its high load capacity makes it particularly suitable for applications requiring both stability and powerful lifting performance.

Weight and Packaging

The lifting frame has a net weight of approximately 47.5 kg, while the packaged weight is approximately 49.5 kg. Standard packaging dimensions are approximately 830×610×240 mm, providing suitable protection during storage, handling, and international transportation.

OEM and Customization

For international wholesalers, distributors, furniture manufacturers, and OEM customers, the 800×600 Double-Layer Dual-Motor 8000N Lifting Frame can be customized according to application requirements. Options may include lifting height, motor configuration, control system, mounting dimensions, load capacity, surface treatment, frame color, logo, and packaging.

Combining an 8000N lifting system, 240 kg dynamic load capacity, dual-motor drive, 1,100 mm maximum height, and stable double-layer construction, this lifting frame provides a powerful and versatile foundation for modern height-adjustable furniture and professional equipment.
